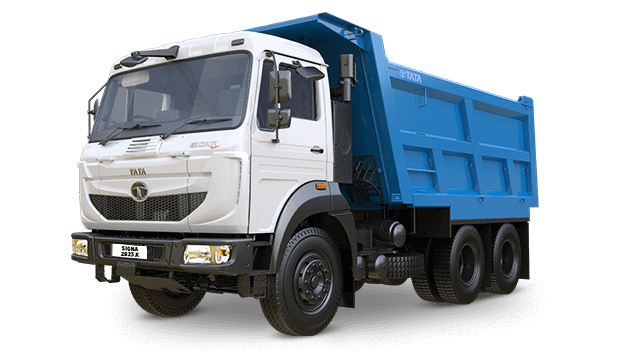

The TATA SIGNA 2823.K HD 9S is a highly versatile tipper for
Time is of essence to any business, especially so in Road construction and material movement applications. The Tata Signa 2823.K is designed and built to maximize productivity and profits, and is equipped with a plethora of features encompassing the POWER OF 6 philosophy.
Powered by the Powerful CUMMINS ISBe 5.6L BS6 compliant engine and driven by its heavy duty drivetrain, this tipper delivers the benefits of faster TAT, more trips and higher Revenue through the POWER OF ENHANCED PERFORMANCE.
Advanced technology features, like 3 mode Fuel Economy switch, Engine brake and Hill Start Assist (HSA) , complement the World class aggregates like the Heavy duty driveline, Fully reinforced chassis frame and Long lasting NGT Brakes, to provide superior performance, higher productivity and to lower expenses. These features demonstrate the POWER of LOWER COST of OPERATION, thereby increasing profits.

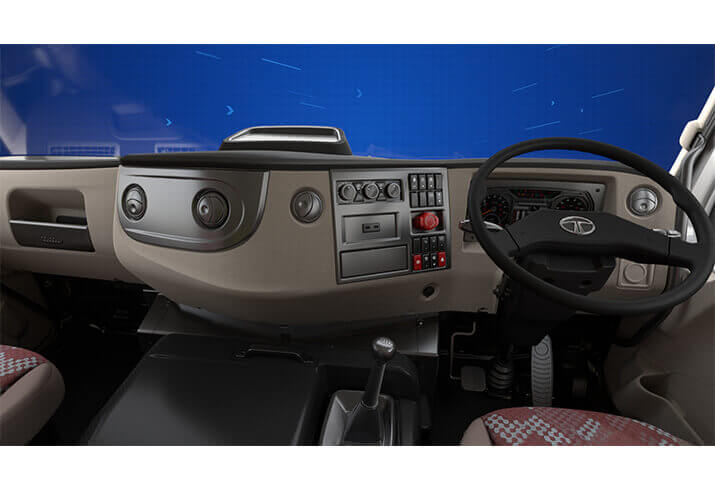

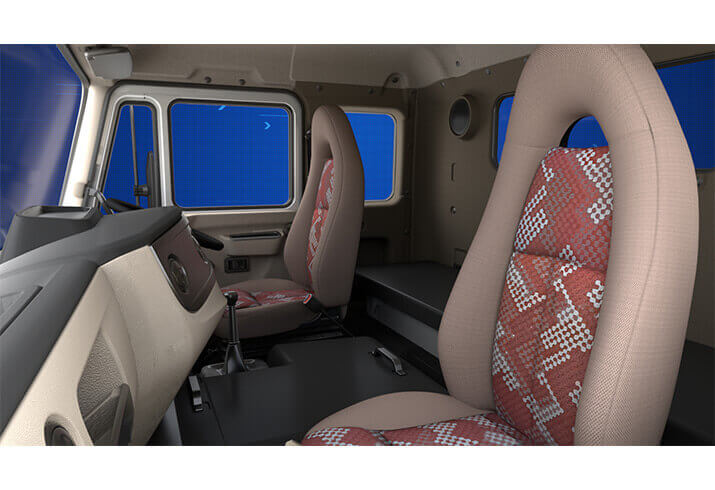

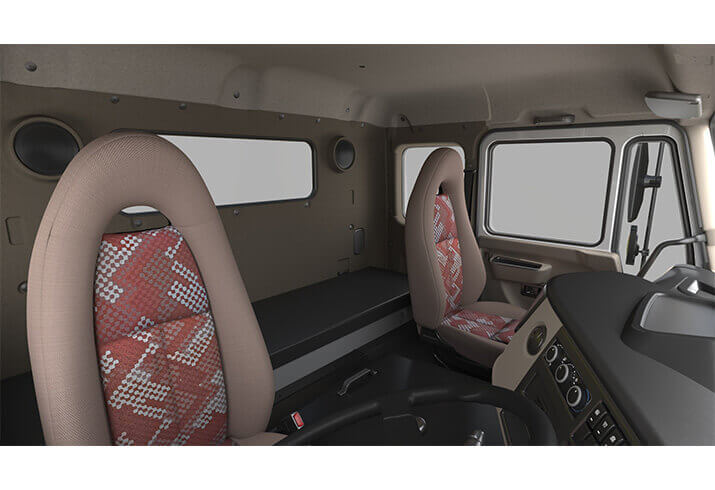

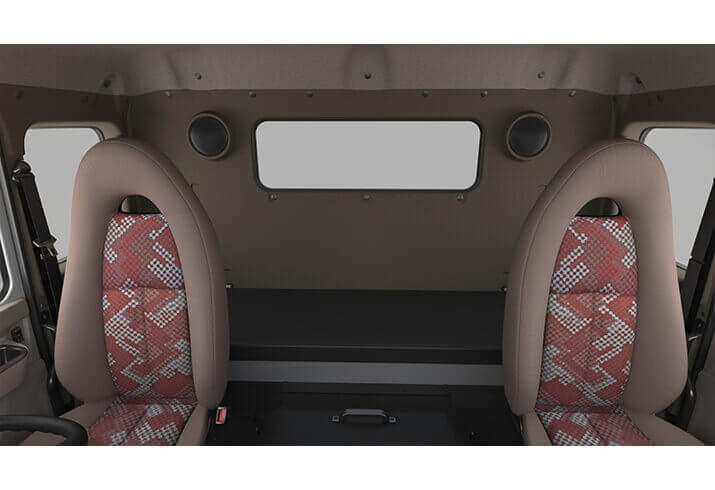

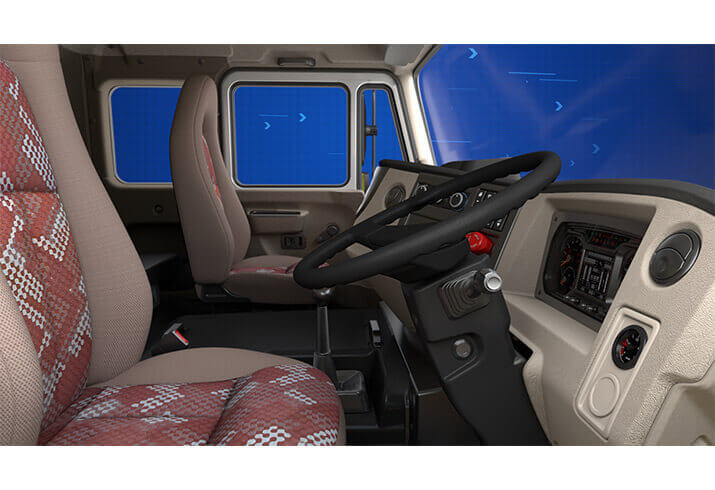

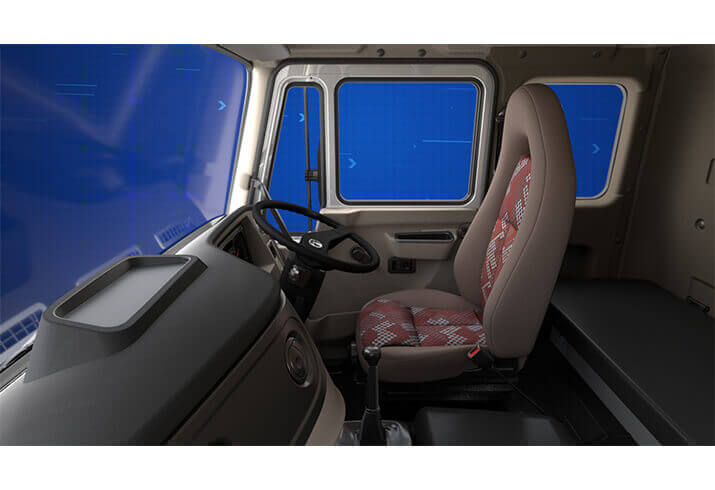

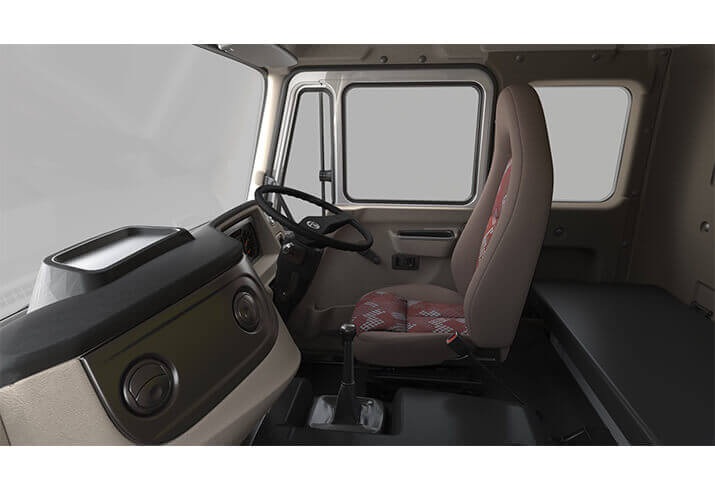

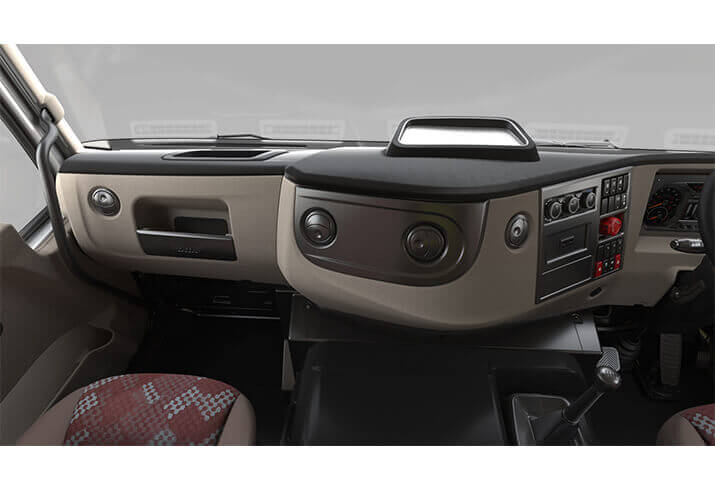

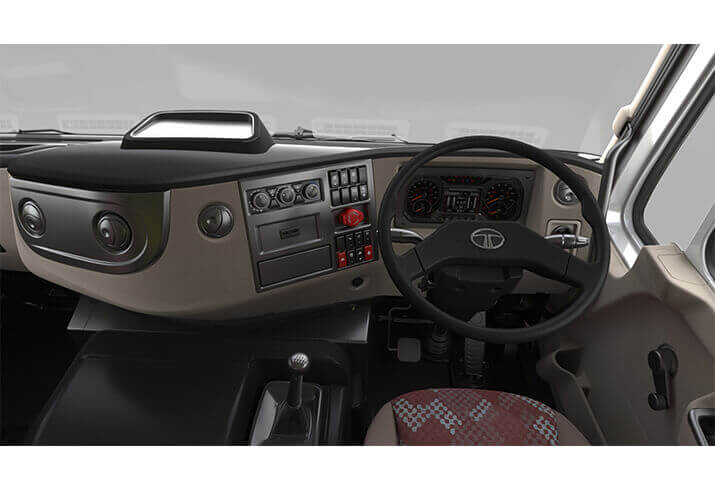

The comfortable and spacious SIGNA cabin offers a fatigue free working environment for the driver. This POWER OF COMFORT and CONVENIENCE increases productivity and accelerates earnings! Corrosion free HDPE fuel tank with anti fuel theft, vertical exhaust along with multiple safety features make this tipper a very good choice for your business.
Experience the POWER OF CHOICE by selecting from the range of fully built options and pairing it with the choice of Cx/ Lx features to get the perfect partner for your business needs.
Real time Vehicle Tracking, Geo fencing, fuel consumption monitoring and anti fuel theft features showcase the POWER OF CONNECTIVITY. Choose from a wide range of Tata Motors Service, AMC, FMS and Driver welfare offerings under Sampoorna Seva and experience TOTAL PEACE OF MIND.
Gross Vehicle Weight : 28000 kg
Engine : Cummins ISBe 5.6 BS6
Max Power : 164 kW @ 2300 r/min
Max Torque : 850 Nm @ 1000-1600 r/min
Clutch : 380 mm Dia Push type Single Plate Dry Friction Organic Lining
Transmission : TATA G1150 9 speed Gearbox with crawler & one reverse
Front Axle : Forged I beam Reverse Elliot type - Drop beam
Rear Axle : Single reduction, extra heavy duty, hypoid gears, fully floating axle shafts with Differential Lock
Frame : Fully Reinforced Ladder type heavy duty frame with Riveted/bolted cross members
Tyres : 295/95 D20
Ventilation : Blower
Fuel Tank : 300L Heavy duty Polyethylene (HDPE) Tank
Body options : 16 m3 Box
Wheelbase Option : 3880 mm
As Per TML Norms
